ARISE Precision Casting
Wax Pattern 0°C
Loading
Safety Critical

Fire Fighting Parts

Fire Fighting Parts
Safety Critical

Fire Fighting Parts

Fire fighting equipment has to perform first time, every time, under pressure. We cast instantaneous hose couplings, delivery and suction couplings, branch pipes, nozzles, adaptors, hydrant valve bodies and sprinkler components. Sound, pressure-tight castings with accurate thread and coupling geometry are verified by dimensional inspection and, where specified, radiography and dye penetrant testing.

  • Weight range 50 gms to 45 kg
  • Tolerance approx. +/-0.005" per inch
  • Minimum wall thickness 3.00 mm
  • Raw, machined or assembled supply
  • Material test certificate with every lot
  • ISO 9001:2015 quality system
Enquire About This Range
Product gallery

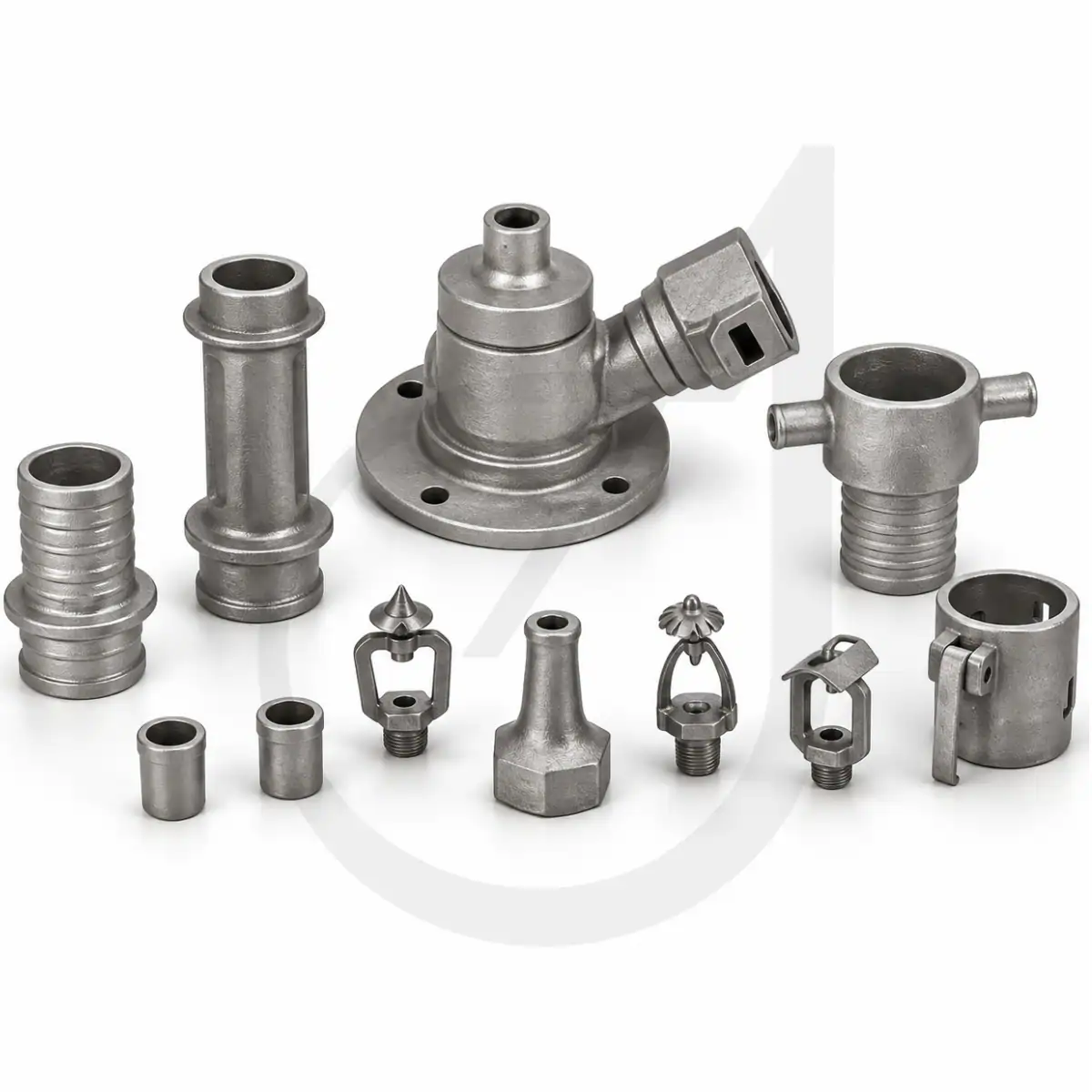

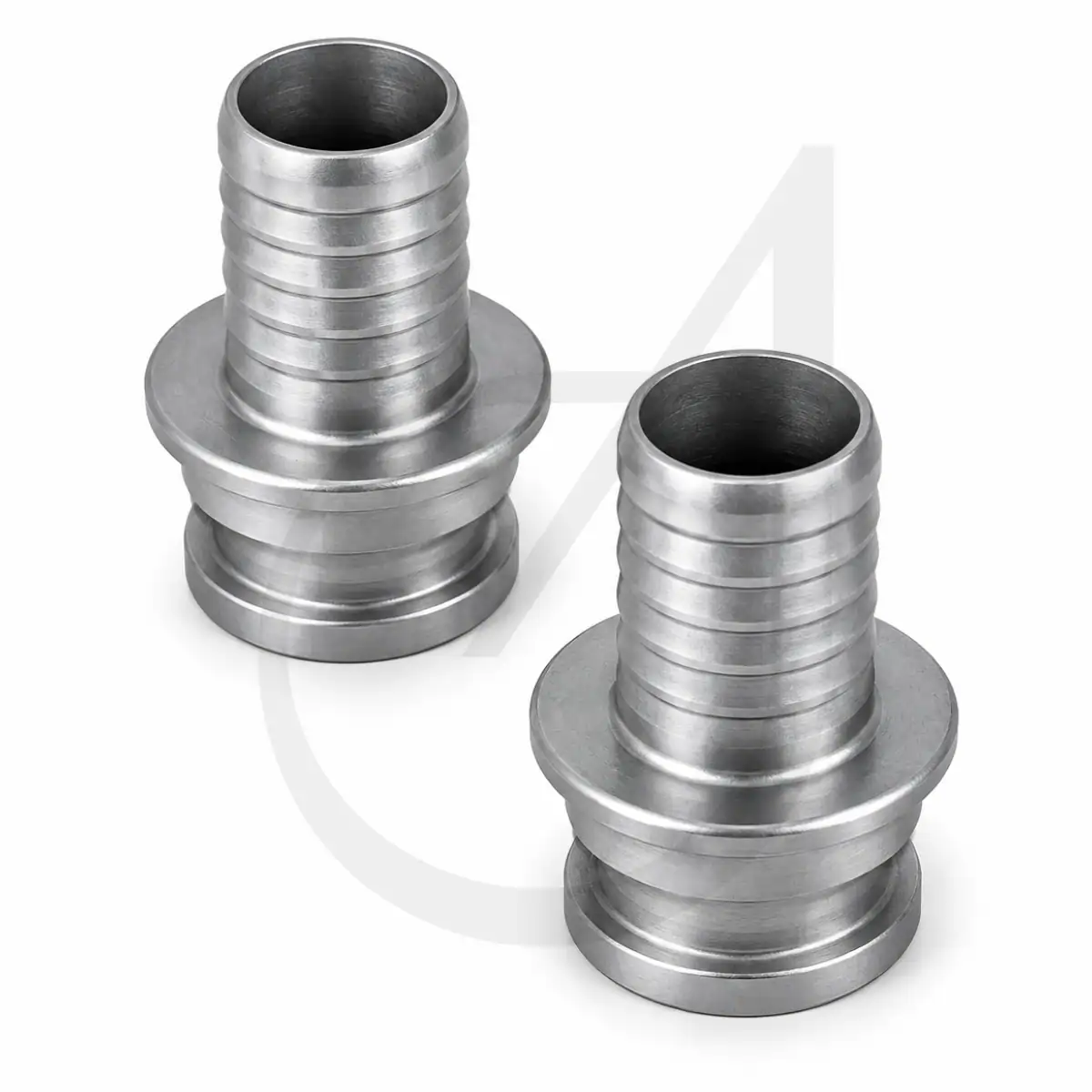

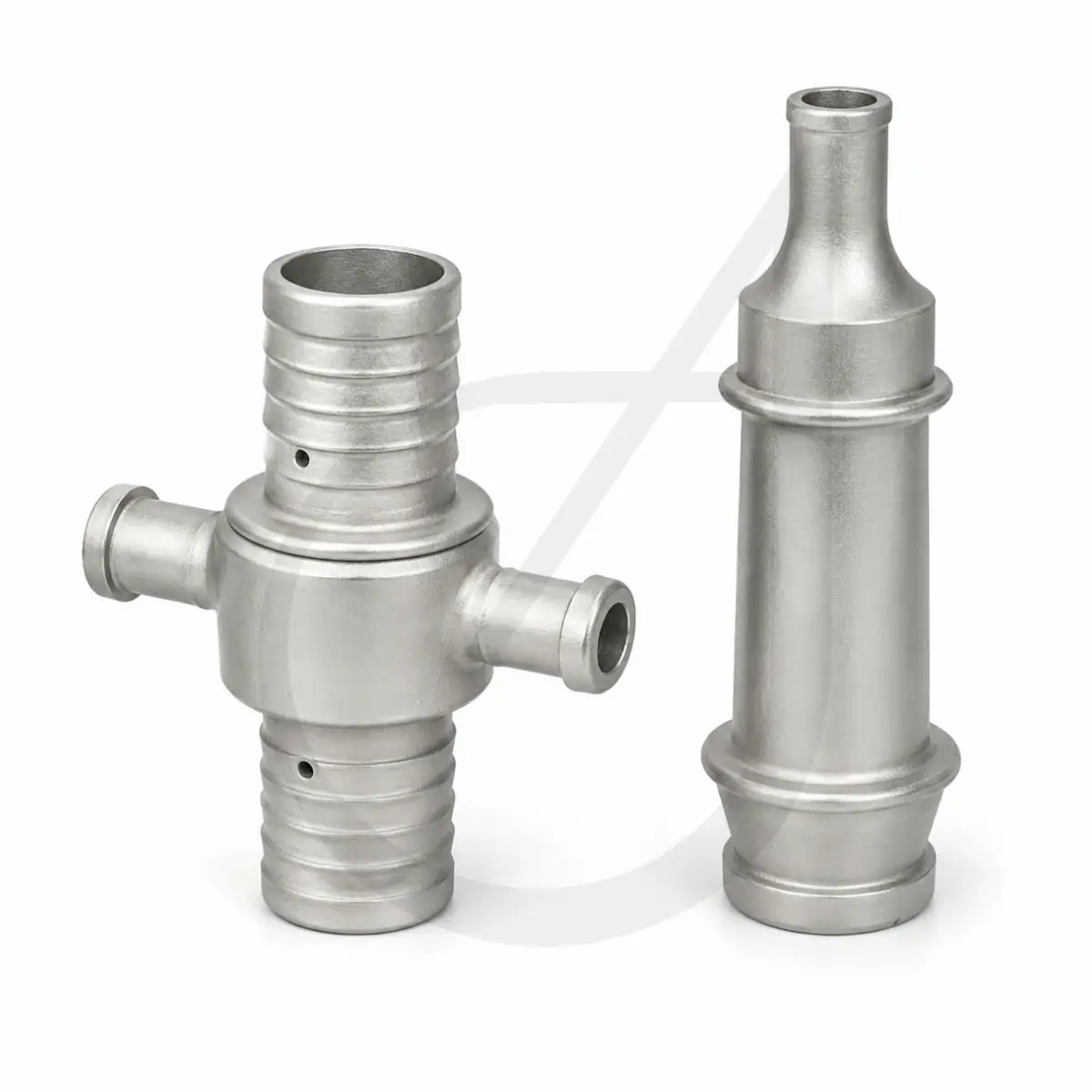

Fire Fighting Parts We Manufacture

A selection of 4 components from this range. Click any image to view it in full size.

How we supply

Specification Summary

Process

Investment casting by lost wax method, precision machining and product assembly.

Materials

Carbon steel, stainless steel, duplex, super duplex and nickel based super alloys.

Surface Condition

Shot blasted, electro polished, zinc plated or as per your requirement.

Testing

Spectrometer, tensile, hardness, impact, radiography, dye penetrant and MPI.

You may also need

Other Product Ranges

Valve Components
Valve Components

Precision cast valve bodies, bonnets, discs and flanged housings for fluid control.

Pump Components
Pump Components

Impellers, casings, diffusers and wear rings engineered for demanding pump duty.

Automotive Parts
Automotive Parts

Shift forks, hubs, knuckles, turbo housings and structural links for vehicle systems.

General Engineering Parts
General Engineering Parts

Levers, brackets, housings, sprockets and custom components to customer drawing.

View All Products
Valve Components
General Engineering Parts

Need Fire Fighting Parts to your own drawing?

Send us the drawing, material specification and annual quantity. Our team will advise on tooling, casting feasibility and machining allowance, and come back with a firm offer.

Request a Quotation
